產品：KL53
產品特性:
■特點：
☆油（氣）缸裝置在卡盤內部，穩定性好，重心低。
☆采用優質合金鋼，滑軌經硬化處理，鋼性及耐磨性好，精度高。
☆可同時安裝多臺，實現多工步加工，提高加工效率。
☆適用于鉆床、銑床和加工中心等機床。
■Specificity:
☆The cylinder device inside the chuck with high reliability and the center gravity low.
☆The chucks are made of high quality aluminum alloy the slide orbit theatment by hardened with nice rigidity and high accuracy.
☆Several chucks can be mounted at the same time so as to fulfill multistep process and increase the machining efficiency.
☆Suitable for the boring milling and machining center machining etc.
產品詳情

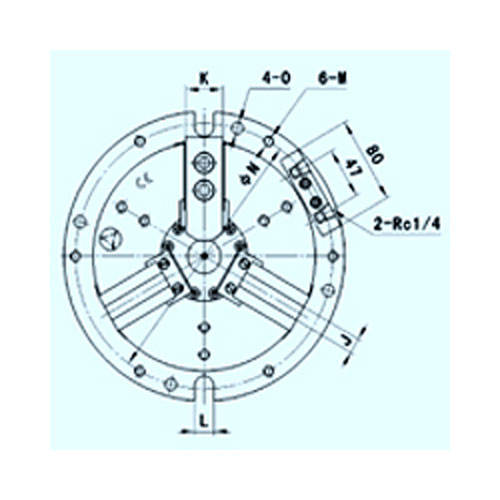

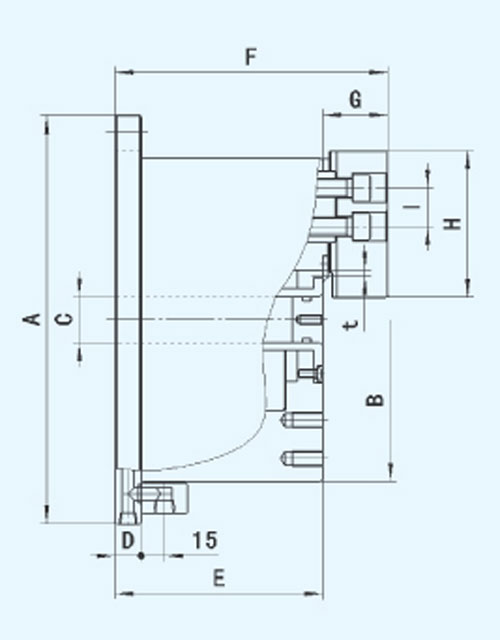

■尺寸Dimension Parameters
|
規格
Size
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
L
|
M
|
N
|
O
|
|
KL53160
|
224
|
169
|
25
|
16
|
118
|
158
|
40
|
73
|
20
|
12
|
31
|
18
|
M10
|
Φ202Φ
|
Φ11
|
|
KL53200
|
265
|
210
|
30
|
17
|
135
|
177
|
42
|
95
|
25
|
14
|
35
|
18
|
M10
|
Φ243
|
Φ11
|
|
KL53250
|
315
|
254
|
52
|
17
|
145
|
191
|
46
|
110
|
30
|
16
|
40
|
18
|
M12
|
Φ85
|
Φ13
|
■性能Characteristic Parameters
|
規格D
Size
|
活塞有效面積㎝2
Piston effective area
|
活塞行程L max
Piston stroke
|
爪行程（直徑）
Jaw stroke t(Dia)
|
最大使用壓力MPa
Max. acting pressure
|
最大夾緊力kN
Max. speed
|
極限轉速r/min
Max. speed
|
夾緊范圍
Claming range
|
凈重kg
Net WT.
|
|
KL53160
|
99
|
12
|
5.5
|
60
|
1.9
|
1800
|
Φ15-Φ169
|
20
|
|
KL53200
|
156
|
16
|
7.4
|
95
|
2.0
|
2800
|
Φ20-Φ210
|
35
|
|
KL53250
|
204
|
19
|
8.8
|
130
|
2.0
|
3700
|
Φ33-Φ254
|
55
|
|
