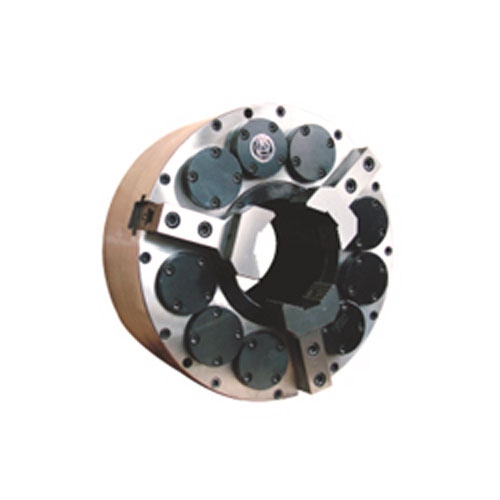

產品：K58
產品特性:
■特點：
☆短圓柱連接形式。
☆大通孔，彈簧夾緊、氣動松開，夾持精度高。
☆一臺設備一般同時配裝兩臺卡盤使用。
☆適用于石油、化工、地質、冶金行業。
☆是數控管子加工機床配套的專用卡盤。
■Specificity:
☆The chuck adopt cylindrical center mounting.
☆Large thru-hole, spring clamping, air-operated loosing and high accuracy clamping.
☆A(yù) machine tool shall be equipped with two chucks.
☆The chuck is suitable for petroleum , chemical engineering , geological and metallurgy fields.
☆The product is a special chuck matched with the pipe CNC machine tool.
產品詳情

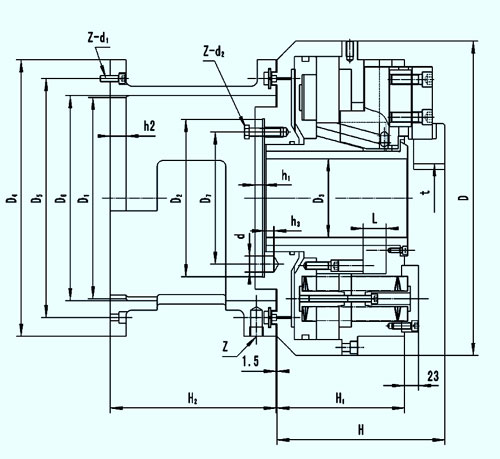

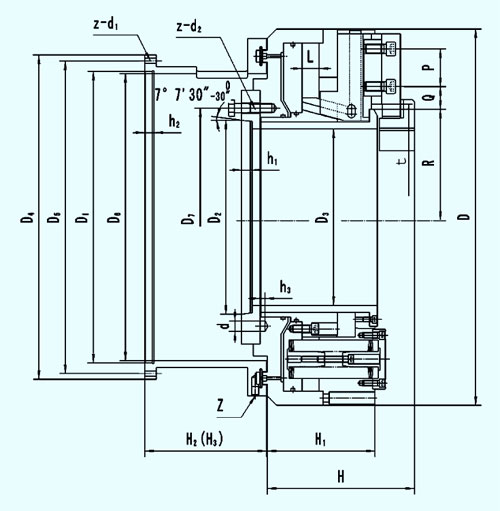

■尺寸、性能參數 Dimension、Characteristic Parameters
|
規格D
Size
|
D1
|
D2
|
D3
|
D4
|
D5
|
D6
|
D7
|
d
|
h1
|
h2
|
h3
|
H1
|
P
|
Qamx
|
Qmin
|
Rmax
|
Rmin
|
|
400
|
250
|
180
|
85
|
315
|
285
|
256
|
145
|
19.5
|
15
|
20
|
10
|
190
|
-
|
—
|
—
|
-
|
—
|
|
500
|
320
|
250
|
125
|
440
|
380
|
326
|
210
|
25.4
|
15
|
25
|
15
|
204
|
60
|
35
|
13
|
110
|
100.4
|
|
550
|
400
|
330
|
205
|
470
|
445
|
390
|
290
|
25.4
|
10
|
20
|
15
|
207
|
60
|
55
|
15
|
141.6
|
132
|
|
650
|
500
|
420
|
260
|
600
|
560
|
506
|
320
|
25.4
|
15
|
20
|
10
|
230
|
-
|
—
|
-
|
—
|
—
|
|
800
|
-
|
412.775
|
375
|
-
|
-
|
-
|
463.6
|
42.1
|
23
|
-
|
10
|
235
|
80
|
60
|
18
|
239.5
|
230
|
|
規格D
Size
|
H2(H3)
|
H
|
Z
|
z-d1
|
z-d2
|
楔心套行程Lmax
Axial wedge stroke
|
爪行程（直徑）
Jaw stroke(Dia)
|
極限轉速
r/min
Max.speed
|
夾緊范圍
Clamping range
|
|
400
|
160（255）
|
240
|
G3/8″
|
6-M10
|
6-M12
|
30
|
16
|
750
|
20—80
|
|
500
|
171.5（265.5）
|
268.5
|
G1/2″
|
6-M10
|
6-M16
|
36
|
19
|
700
|
60-114
|
|
550
|
161.5(255.5)
|
283
|
G1/2″
|
7-M10
|
6-M16
|
36
|
19
|
650
|
60-180
|
|
650
|
175(270)
|
290
|
G1/2″
|
7-M10
|
6-M16
|
36
|
19
|
600
|
100—255
|
|
800
|
-
|
330
|
-
|
-
|
6-M20
|
36
|
19
|
500
|
100-340
|
產品備注
※表中（）內尺寸適用于前卡盤。
※The values on the above table’s parentheses are for front chuck.
|
