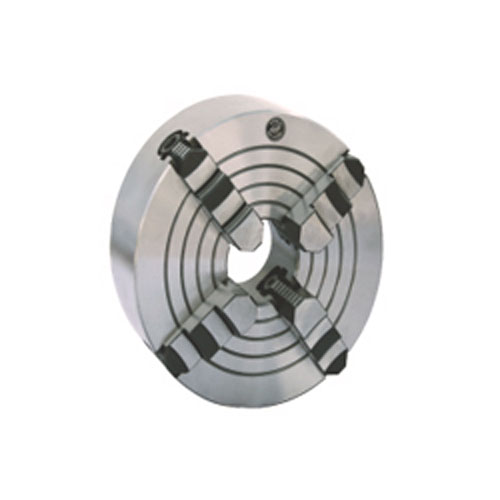

產品：K72
產品特性:
■特點：
☆短圓柱連接形式。
☆單動可調，適用各種形狀工件的加工。
☆按盤體材質分：灰鑄鐵（K72），鋼盤體（K72（G）。
■Specificity:
☆K72 chucks adopt short cylindrical center mounting.
☆Independent and adjustable , suitable for machining all kinds of special-shaped workpieces.
☆The body materials are classified as gray cast iron (K72) and steel (K72(G)).
產品詳情

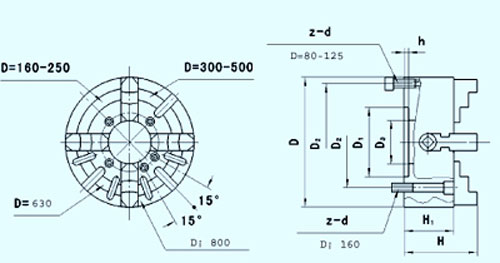

■尺寸、性能參數 Dimension、Characteristic Parameters
|
規(guī)格D
Size
|
D1
|
D2
|
D3
|
H
|
H1
|
h
|
z-d
|
最大允許輸入扭矩N.m
Max.input torque
|
極限轉速r/min
Max.speed
|
凈重Kg
Net WT.
|
|
50
|
15
|
-
|
M14×1
|
54
|
40
|
4
|
-
|
-
|
-
|
-
|
|
80
|
55
|
66
|
22
|
56
|
42
|
3.5
|
4-M6
|
25
|
4000
|
-
|
|
100
|
72
|
84
|
25
|
54
|
74
|
3.5
|
4-M8
|
30
|
3500
|
3
|
|
125
|
95
|
108
|
30
|
78
|
56
|
4.5
|
4-M8
|
50
|
3000
|
5
|
|
160
|
65
|
95
|
45
|
93
|
65
|
5
|
4-M10
|
70
|
2500
|
9
|
|
200
|
80
|
112
|
56
|
107
|
75
|
6
|
4-M10
|
100
|
2000
|
15
|
|
250
|
110
|
130
|
75
|
120
|
80
|
6
|
4-M12
|
150
|
1600
|
23
|
|
300
|
152
|
130
|
75
|
134
|
90
|
6
|
4-M12
|
180
|
1200
|
39
|
|
320
|
140
|
165
|
95
|
134
|
90
|
6
|
4-M16
|
200
|
1200
|
40
|
|
350
|
130
|
168
|
95
|
134
|
90
|
6
|
4-M16
|
250
|
1200
|
53
|
|
400
|
160
|
185
|
125
|
143
|
95
|
8
|
4-M16
|
280
|
1000
|
55
|
|
450
|
180
|
205
|
140
|
147
|
100
|
8
|
4-M16
|
300
|
900
|
71
|
|
500
|
200
|
236
|
160
|
161
|
106
|
8
|
4-M20
|
350
|
800
|
102
|
|
630
|
220
|
258
|
180
|
180
|
118
|
10
|
4-M20
|
400
|
600
|
159
|
|
800
|
250
|
300
|
210
|
202
|
132
|
12
|
8-M20
|
500
|
500
|
255
|
|
1000
|
320
|
370
|
260
|
230
|
150
|
15
|
8-M20
|
600
|
400
|
418
|
|
1250
|
400
|
500
|
305
|
246
|
165
|
15
|
8-M20
|
700
|
300
|
-
|
|
1400
|
400
|
500
|
305
|
246
|
155
|
15
|
8-M20
|
800
|
260
|
-
|
|
1600
|
420
|
520
|
320
|
266
|
175
|
20
|
8-M24
|
900
|
200
|
-
|
|
2000
|
450
|
560
|
350
|
290
|
190
|
20
|
8-M30
|
1000
|
150
|
-
|
產品備注
根據用戶需求，還可提供配帶分離爪（滑座和頂爪連接尺寸符合ISO3442）的四爪單動卡盤，型號為K72A、K72D、K72E。
Two-piece jaw sets on request top jaws with tongue groove conforming to ISO3442.The model is K72A、K72D and K72E separatly.
|
