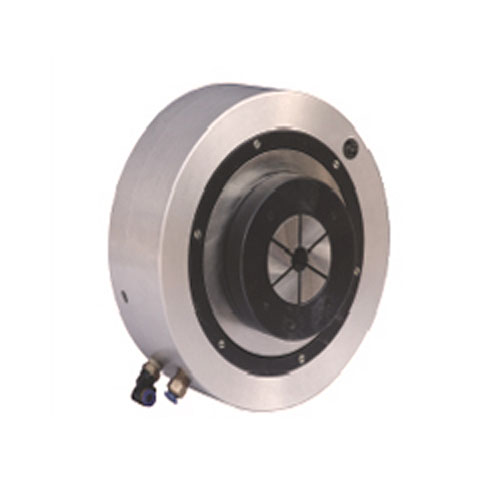

產品：JQ7-50
產品特性:
■特點：

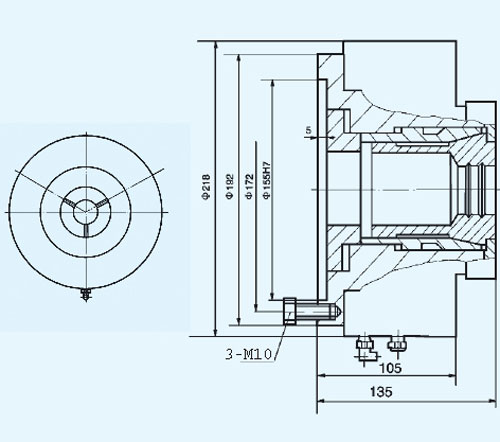

☆短圓柱連接形式。
☆氣缸與夾頭連為一體，重量輕，精度高，自動夾緊。
☆夾緊夾頭（圓孔、四方孔、六方孔）符合DIN6343標準，更換方便。
☆適用于自動化送料裝置的設備。
■Specificity:
☆Short cylindrical center mounting .
☆The pneumatic cylinder and the collet are joined together with light weight, high accuracy and automatic clamp.
☆The collet (round hole, square hole, hexagonal hole) conforms to DIN6343 standard and is changed quickly.
☆Suitable for the equipment with automatic conveyor .
產品詳情
■性能參數 Characteristic Parameters
|
規(guī)格
Size
|
極限轉速
Max speed
|
工作壓力Mpa
Operating pressure
|
夾緊力矩kg.m
Gripping torque
|
活塞行程
Piston stroke
|
夾緊外徑Max
Gripping diameter
|
凈重Kg
Net WT
|
|
JQ7-50
|
1600
|
0.6
|
3(Φ15mm)
|
8
|
50
|
18
|
|
