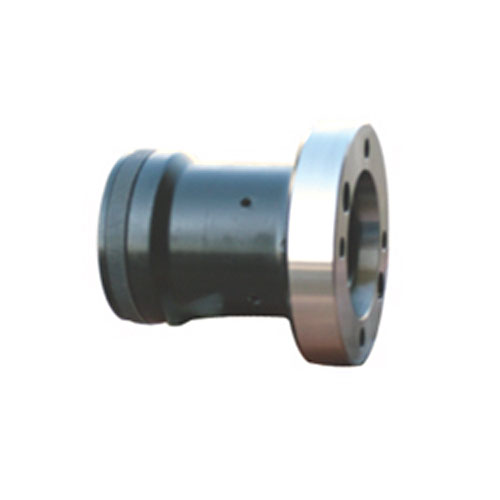

產品：J62
產品特性:
■特點：
☆動力操縱，自動夾緊。
☆高速度，高精度，大夾緊力。
☆?yuàn)A緊夾頭（圓孔、四方孔、六方孔）。符合DIN6343標準，更換方便。
■Specificity:
☆Operated by power and clamping automatically.
☆High speed, high accuracy and high gripping force.
☆The clamping chucks (round hole, square hole and hexagon hole )conform to DIN6343 standard, changed quickly.
產品詳情

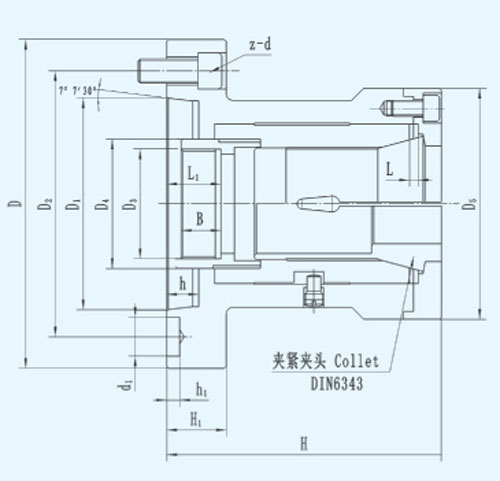

■尺寸參數 Dimension Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
D4
|
D5
|
H1
|
h1
|
H
|
B
|
h
|
L1
|
d1
|
z-d
|
|
J6230/A24
|
110
|
63.513
|
82.6
|
M40×1.5
|
50
|
86
|
27
|
6.5
|
112
|
13.5
|
13
|
27.5
|
14.7
|
4-M10
|
|
J6230/A25
|
135
|
82.563
|
104.8
|
M40×1.5
|
50
|
86
|
27
|
6.5
|
112
|
13.5
|
15
|
27.5
|
16.3
|
4-M10
|
|
J6242/A25
|
135
|
82.563
|
104.8
|
M50×1.5
|
62
|
100
|
27
|
6.5
|
134
|
17.5
|
15
|
31.5
|
16.3
|
4-M10
|
|
J6242/A26
|
170
|
106.375
|
133.4
|
M50×1.5
|
62
|
100
|
30
|
6.5
|
135
|
17.5
|
16
|
32.5
|
19.5
|
4-M12
|
|
J6260/A26
|
170
|
106.375
|
133.4
|
M70×2.0
|
80
|
128
|
30
|
6.5
|
151
|
17.5
|
16
|
33.5
|
19.5
|
4-M12
|
■性能參數 Characteristic Parameters
|
規格
Size
|
最大夾持直徑
Max. gripping Dia
|
套筒行程
Sleeve stroke
|
最大允許推力
Max. draw pull
|
最大夾緊力
Max gripping force
|
極限轉速
Max speed
|
凈重Kg
Net WT
|
|
J6230/A24
|
30
|
3.5
|
20
|
43
|
8000
|
4.5
|
|
J6230/A25
|
30
|
3.5
|
20
|
43
|
8000
|
5
|
|
J6242/A25
|
42
|
5
|
25
|
54
|
7000
|
6.1
|
|
J6242/A26
|
42
|
5
|
25
|
54
|
7000
|
7.5
|
|
J6260/A26
|
60
|
5
|
30
|
65
|
5500
|
14.1
|
|
