產品：P24C
產品特性:
■特點：

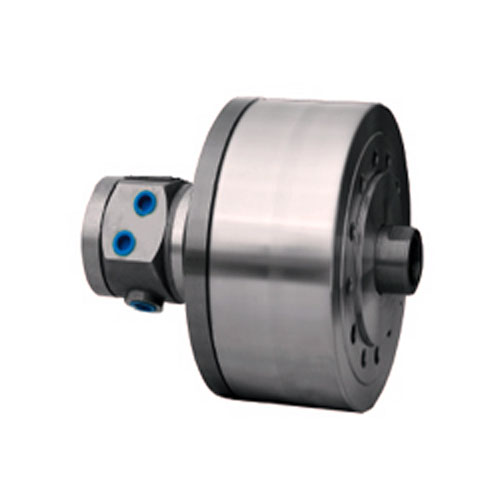

☆不通孔高速回轉油缸。油缸采用優質鋁合金材料，體積小，重量輕，轉速高，密封性好。
☆是數控車床理想動力源。
■Specificity:
☆The cylinders are non-through-hole high-speed rotating hydraulic ones,which are made of high quality aluminium alloy ,with small volume,light weight ,high speed and good sealing reliability , etc.
☆I(lǐng)t is the ideal power source for the CNC lathes.
產品詳情

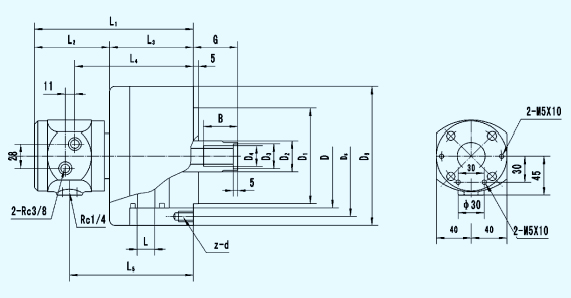

■尺寸參數 Dimension Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
D4
|
D5
|
D6
|
B
|
L1
|
L2
|
L3
|
L4
|
G
|
L5
|
z-d
|
|
max
|
min
|
|
P24125C
|
125
|
110
|
36
|
25
|
M24
|
130
|
160
|
44
|
182
|
84
|
96.5
|
136
|
51
|
26
|
141
|
6-M12
|
|
P24160C
|
160
|
110
|
45
|
31
|
M30
|
130
|
200
|
45
|
191
|
84
|
107
|
145
|
56
|
26
|
149
|
12-M12
|
|
P24200C
|
200
|
120
|
55
|
37
|
M36
|
145
|
245
|
60
|
206
|
84
|
122
|
159
|
69
|
34
|
164
|
12-M16
|
■性能參數 Characteristic Parameters
|
規格
Size
|
活塞有效面積㎝2
Piston effective area
|
活塞行程Lmax
Piston stroke
|
最大推拉力kN
Max. draw pull
|
最大使用壓力Mpa
Max. acting pressure
|
極限轉速r/min
Max. speed
|
凈重Kg
Net WT
|
|
P24125C
|
112
|
25
|
42
|
4.0
|
6000
|
10
|
|
P24160C
|
185
|
30
|
69
|
4.0
|
5500
|
15
|
|
P24200C
|
290
|
35
|
108
|
4.0
|
5500
|
22
|
|
